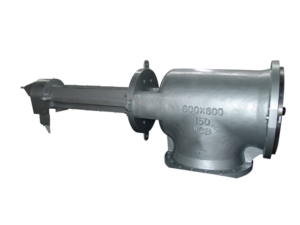

The inlet and outlet passageways of the angle type dumping valve are not in the same direction, forming a right angle. This kind of dumping valve can allow the medium flowing through the valve to change its flowing direction, thus generating a certain pressure loss. The dumping entry has been designed as pipe-connection and flat bottom.

An anti-washing and anticorrosion protection plate is set in the cavity of valve body. At the moment of valve opens, the plate can protect valve from washing our or erosion, and is characterized as high abrasion-resisting and erosion-proof. This kind of slurry valve hardly changes the flowing direction.

The valves are widely used in chemical fertilizer, mining, metallurgy, aluminum oxide and other industries.

Design standard as per: BS1873、GB/T 12235.

The sealing adopts spherical seal, the surface of which is line connecting.

High abrasion-resisting and erosion-proof.

The valve is designed as a back seat sealing structure

Full Stellite or Tungsten carbide overlay seat sealing surface.

Use flexible and woven graphite collaboration type packing.

Body material:

• carbon steel,
• stainless steel,
• alloy steel

Sizes

• From 1/2” to 60″

Pressure Ratings

• From 150# to 4500#

Connection Types

• RF (Raised Face)
• RTJ (Ring-Type Joint)
• M (Male)
• F (Female)
• BW (Butt Weld)
• Grayloc

Temperature range

• -196 ~ +907℃

Operation

• handwheel,
• gear box,
• electric.
