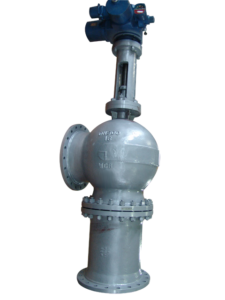

The inlet and outlet passageways of the angle pattern control valve are not in the same direction but forming a 90° angle. This kind of control valve can allow the medium flowing through the valve to change its flowing direction. It refers to the valve realizing adjustment of medium flow and pressure by changing the flowing area.

The valves are widely used in chemical fertilizer, mining, metallurgy, aluminum oxide and other industries.

Design standard as per: BS1873、GB/T 12235

Cone valve discs

Sealing surface adopts line sealing, ensuring reliable tightness.

Erosion-proof and corrosion-resisting

Full Stellite or Tungsten carbide overlay seat sealing surface

Use flexible and woven graphite collaboration type packing.

Body material:

• carbon steel,
• stainless steel,
• alloy steel

Sizes

• From 1/2” to 60″

Pressure Ratings

• From 150# to 2500#

Connection Types

• RF (Raised Face)
• RTJ (Ring-Type Joint)
• M (Male)
• F (Female)
• BW (Butt Weld)
• Grayloc

Temperature range

• -196 ~ +907℃

Operation

• handwheel,
• gear box,
• electric.
